Using Visual Studio Team Services (VSTS) and Git with VS 2017

Rate me:
Please Sign up or sign in to vote.
4.80/5 (5 votes)
22 Jan 2018CPOL12 min read 35K   18   2
How to use Visual Studio Team Services and Git with VS 2017

Table of Contents

  1. Preface
  2. Create a Project in VSTS
  3. Check-in the Code
  4. Code Comparison and Staging, Blame (Annotate)
  5. Revert and Reset
  6. Setting up work item check-in and build configuration
  7. Branching, Pull-Request, Squash Merge, Cherry-picking, Rebase and Fork
  8. Tagging
  9. Importing Git Repository from Github in VSTS and VS 2017

1 Preface

What this Article Contains?

This article discusses how to use VSTS and Git with Visual Studio 2017. VSTS and VS 2017 have built-in provision for using Git Repositories. This article uses VSTS and VS 2017 Community edition. It will also touch-base on some parts of scrum board and Build Configuration, but not in its entirety. The focus of this article is to use code repositories with VSTS or Visual Studio. Screenshots are added wherever applicable.

What this Article Doesn’t Contain?

It doesn’t contain code with Visual Studio 2015. Some features may work in VS 2015 as well, but not all. VSTS also provides integration with tools like Command-line interface (CLI), IntelliJ, XCode, and Eclipse but it is not part of this article. It doesn’t contain aspects of Continuous Integration (CI) / and Continuous Delivery (CD).

What is VSTS?

VSTS is an integrated, collaborative environment that supports Git, continuous integration, and Agile tools for planning and tracking work.

How is it Different from TFS?

In simple terms, TFS is on-premises based while VSTS is the cloud offering. VSTS provides a scalable, reliable, and globally available hosted. It is backed by a 99.9% SLA, monitored by Microsoft 24 * 7 operations team, and available in local data centers around the world.

Software Requirements

Visual Studio Community Edition 2017 and VSTS account, and Git account. Git is free and VSTS account is free for up to 5 users.

Getting Started

2 Create a Project in VSTS

Click on “New Project” in VSTS.

Image 1

Enter Project Name, Description, Version control, and Work item process and click Create.

Image 2

Select “Code” in VSTS and click on “New Repository”. Enter Repository Name, add Readme file and gitignore file.

Readme file is used to give a brief introduction of the project and gitignore file is used to ignore tracking of files such as temp files and build results.

Image 3

Image 4

Open Visual Studio 2017 and go to Team Explorer, wherein two options are visible, Visual Studio Team Services and Github.

Image 5

Connect with Visual Studio Team Services. It will ask for credentials, provide the same credentials you have used while creating VSTS account. Once connected, it looks like this:

Image 6

Now, VS 2017 is connected to VSTS and “FirstApp” is visible. Click on “FirstApp” and Connect. Once connected, Visual Studio will ask to clone the code. Enter local path to clone the code and click “Clone”. Now, at local path, files are downloaded, and files are visible. File marked in red is gitignore file.

Image 7

Create a new ASP.NET Core project at the same location (C:\Users\<username>\Source\Repos\Demo) and see Team Explorer in Visual Studio. Click on Changes.

Image 8

It will show all changes, enter comment and click on “Commit All”.

Image 9

3 Check-in the Code

What is the Difference Among Commit, Push, Fetch, Pull and Sync?

Commit

Refers to check-in to local repository. If we see right-side corner of Visual Studio 2017, we can see a bar. The red marked below is specifying that there are 58 changes to my local code, and is available for commit.

Image 10

Once code is committed, click on master and “View History”.

Image 11

And complete history of code committed will be visible in local repository.

Image 12

Push

Refers to check in to main repository, i.e., VSTS, so that other developers can download the code.

After Successful Commit, the bar will show un-pushed commits. Since we have only 1 commit, the number will show as 1. Click it.

Image 13

Image 14

Outgoing Commit shows list of all commits available in local repository. Now, click on Push. Once it is successfully pushed to main repository, the bar will show 0 pending changes and 0 pending commits.

Image 15

Now, go back to VSTS portal and we can see that the code is checked-in.

Image 16

Commit Id “dfc54661” is matching with commit Id in “View History” tab, as shown earlier.

Fetch

Fetches check-in by other team members, but doesn’t apply to your local code. For demo purposes, we can change code directly in VSTS using edit option on file.

Image 17

Click Edit. Add some text to “About.cshtml” and commit. Now, go back to Visual Studio and click on “Sync” option.

Image 18

After Clicking Sync, it will show three options: Sync, Fetch and Pull.

Image 19

Click on Fetch and we can see modified code is shown as Incoming commit, but not applied to code yet.

Image 20

Pull

Apply VSTS check-in of other team members to your local code. Once user clicks pull, it will merge main repository code, i.e., VSTS code with local.

Image 21

So, the content modified is now visible in local. User can “Pull” even without selecting “Fetch” option first. Pull performs two operations: Fetch + Merge

Sync

All incoming commits (Fetch) and outgoing commits (Push) are done in single click and code is merged in both the VSTS and local repositories or we can say code is synced.

Image 22

4 Code Comparison and Staging, Blame (Annotate)

Code Comparison

We can go to a file or folder and click on compare option in VSTS. It will list out all the commits, and we can compare between them.

Image 23

From VS 2017, it is simple. Go to “View History” and click compare by selecting any two commits. Click “Compare with Source”.

Image 24

Staging

This is a very important concept if developer wants to commit only few files. It is same as “Excluding – Including files” in previous versions of Visual Studio.

Consider, I have changed both “About.cshtml” and “Contact.cshtml”, but want to commit only “About.cshtml”. Use staging in such scenarios. Right click “About.html” and stage. Dropdown is automatically changed to “Commit Staged” and is available for commit.

Image 25

Blame (Annotate)

Blame (Annotate) shows the complete commit history vis-à-vis current file.

Image 26

Image 27

Image 28

User can then open the file committed earlier.

5 Revert and Reset

Revert

Revert undos a commit by creating a new commit.

e.g. Modify Code in Contact.cshtml, commit it, go to “View History” and click “Revert”. A new commit will be added automatically, once user syncs the code, it contains exactly the same code as before.

Image 29

Reset

It is resetting master to a different commit in local, other than the latest one.

Image 30

Reset- Keep Changes

This will keep the changes done in all latest commits locally and all later commits are visible as incoming commits. Master is changed. Since changes are kept, user can again commit the code.

Image 31

Image 32

Reset – Delete Changes

This will remove all the latest changes and code changes in later check-ins are not visible locally, but incoming commits are visible as it is.

6 Setting Up Work Item Check-in and Build Configuration

Go to VSTS dashboard, and create a task. We will associate this task with check-in.

Image 33

Assign a task to a resource (Rahul.mittal in this case), enter description, set priority, and specify effort. Click Save and Close.

Image 34

When user saves, unique task number is assigned to each task.

Image 35

Go back to Visual Studio, make changes and associate work item 4 while committing the code.

Image 36

When we again go to task board in VSTS, we can see development history associated with this item.

Image 37

Click on changes committed, and we can see the comparison.

Image 38

Now, go to Build and Release option in VSTS. Click on “New Definition”. Select “ASP.NET Core” template option. User can choose other templates based on type of application.

Image 39

Select Agent Queue as “Hosted VS 2017”. Click “Save & Queue”.

Then enter Comment, select branch as “Master” and click “Save & Queue”. In “Commit” textbox, either enter 40 characters or leave it empty, otherwise it will show the following error:

“The value specified for SourceVersion is not a valid commit ID.”

Image 40

Build definition is queued. We can click on the link to see the details.

Image 41

It can take some time to build, finally it will show up the below screen with build as successful message.

Image 42

You will receive an email in the inbox confirming successful build.

Image 43

If there is error in code, it will throw an error, e.g., In the below example, we have removed semi colon (;) from code. Now, we are pushing this code and then again, we run build definition.

Image 44

And here, the build fails. :)

Image 45

Mail notification is received about build failure.

Image 46

Go to VSTS application page and we can see the statistics related to number of check-ins, build failure count depending on selection of activity timeframe (7 in this case).

Image 47

7 Branching, Pull-Request, Squash Merge, Cherry-picking, Rebase and Fork

Branching

Go to VS 2017, Select “Branches” option and enter a name of new branch to be created (Demo_Branch1 in the below example).

Image 48

Once it is created, we can see on the right-corner of Visual Studio, two options are available. One is “master”, another is “Demo-Branch1”. Visual Studio will automatically point to branched version, although user can select “master” version as well.

Now, right-click and select “Push Branch” and it is visible in VSTS.

Image 49

Pull-Request

Modify code in Contacts.cshtml in branch version, commit and push.

Image 50

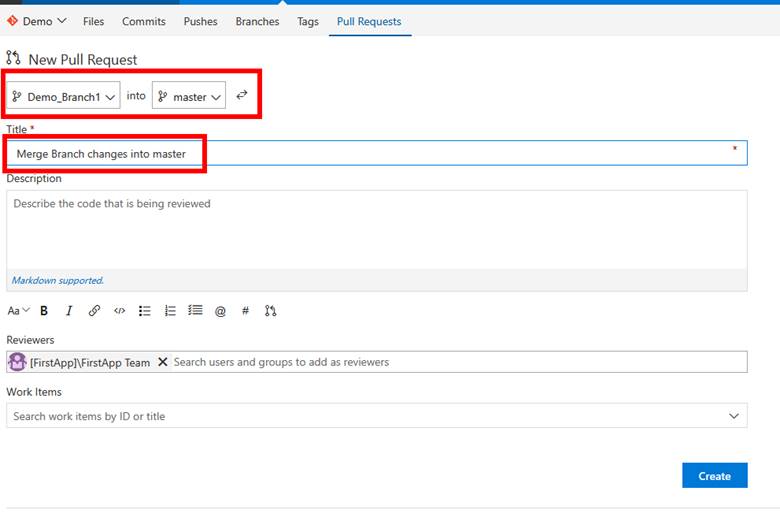

Go to VSTS, click on “Pull Requests”, and create a new “Pull Request”. Suppose, we want to merge data from branch to master. Select source and destination. Select branch name (Demo_Branch1) as source code path and “master” as destination path. Add relevant Title. Add Reviewers, if required, else if reviewer is a part of development team, team name is listed by default.

We can see below, the number of pushed files in the branch are shown. And pull-request is also comparing the code in the file, which can be used for quick reference.

Click Create.

Image 51

Image 52

This will be sent to the reviewing team for Approval. There are multiple options such as “Approve”, “Approve with suggestions”, “Wait for an author” and “Reject”. If it is rejected, the developer must modify the code and push the code into the branch with latest changes.

In this example, the reviewer approves. Next, assign “Work item”. (I have created a new work item for merging the code from branch to main, and the ID generated is 5).

Image 53

If we go to the dashboard, we can see Task 5 displayed in the “New” list.

Image 54

Click On “Complete”. A pop-up will open. Three check-boxes are displayed:

  1. Complete linked work items after merging. This checkbox is enabled because we have associated the work item with this pull request. Otherwise, it will remain unchecked and disabled.
  2. Delete <branch> after merging. It will delete the branch after successful merge of code with master. In this example, it is unchecked because I still must work on the branch.
  3. Squash merge – This merges all commit history into a single commit. Otherwise, a complete list of commits from branch code will be visible in the master version also. Select this checkbox and click “Complete Merge”.

Image 55

We can see history of commits in master. Pull-request number is also displayed. Note that this pull request number is unrelated to Work-item number.

Image 56

Also, task automatically moves in board and it is closed.

Image 57

Go to Visual Studio code and select “master” from right bottom corner of Visual Studio.

Image 58

We can see incoming commits, merged from branch code. Click pull and master-branch are in sync.

Image 59

What If We Don’t Squash Merge?

We can see, it is displaying each commit history (in red) and then performing the merge operation (in green) If there are lot of small commits in branched version, it is recommended to Squash merge in “master” for cleaner history.

Image 60

Cherry-Pick

Cherry-pick, in simple terms, is selective merge, or selecting only limited files out of multiple commits for merging operation.

Suppose, a new Branch is created from “Demo_Branch1” and named as “Demo_Branch2”. Now, file (“About.cshtml” in this example) is wrongly modified (marked as red below) in “Demo_Branch2” and committed.

Image 61

Image 62

It should have been modified in “Demo_Branch1”. Go to Manage Branches, select “Demo_Branch1” and click checkout.

Image 63

Now, view history of “Demo_Branch2”. Select the commit you want to cherry pick. Right click and cherry pick the wrong commit. We can see the change are reflected in “Demo_Branch1”.

Image 64

Now, we can push commit of “Demo_Branch1” and revert commit of “Demo_Branch2”.

Rebase

Rebase is used to take commits from master to branch at one go. Rebase is not “merge”.

E.g., in master, we have 2 commits in home controller.

Image 65

And in Demo_Source1, we have a commit in “Index.cshtml” file.

Image 66

While modifications are on in “Demo_Branch1”, I want to apply commits of “master” to “Demo_Branch1”. This can be done using rebase.

Go to Manage Branches. Right click “Rebase Onto”. Select “master” as “onto branch”. Click Rebase. Merge Code, if required… And we can see changes of “master” is rebased in to “Demo_Branch1”.

Image 67

Note
  1. Rebase doesn’t work if changes are not committed.
  2. It is recommended to rebase only commits, not pushed in changes.

Fork

Fork is used if some developer is developing an exclusive feature and then wants to push it to master. Fork increases isolation from main code and hence increases stability of main code. When fork is created, no other branches are visible in right bottom bar in Visual Studio.

Image 68

However, code can be merged into master using pull-request.

Image 69

8 Tagging

Use Create Tag option to bookmark the check-in. It is useful for bookmarking and later can be used to search the commits.

Image 70

Right click and click “Create Tag”. Fill “Tag name” and description and click on “Create Tag”.

Image 71

Refresh history and see the tag.

Image 72

However, as of now, tags can’t be pushed to main repository via Visual Studio. Either we should create tag at VSTS or use command line. Right-click commit in VSTS and tag it, e.g., Fork_MainBranch.

Sync the code, and refresh the history in Visual Studio 2017. “Fork_MainBranch” is visible.

Image 73

9 Importing Git Repository from Github in VSTS and VS 2017

Create a project in VSTS as described in step 2. Click on “Import” in Import Repository.

Image 74

Go to Github account, select any project created in github. And click on “Clone or Download” button.

Copy the URL and fill in the “Import” form of VSTS. Since project is public, no authorization is required, and project can simply be imported from Git.

Image 75

Mail will be received confirming successful import.

Image 76

Clone the repository to local as specified in step 2. Add dummy file and commit/push the code. It is now visible in VSTS.

Image 77

We can use Visual Studio 2017 to import directly from Github. Click on Github option in VS 2017 team explorer. Click Clone.

Image 78

Click Clone and select project.

Image 79

Click Clone and add text file at folder location.

Image 80

Go back to VS 2017 again and click on Changes and Commit/Push.

Image 81

Go to Github and see the check-in.

Image 82

Thank you for reading!
